FEY rings

FEY rings

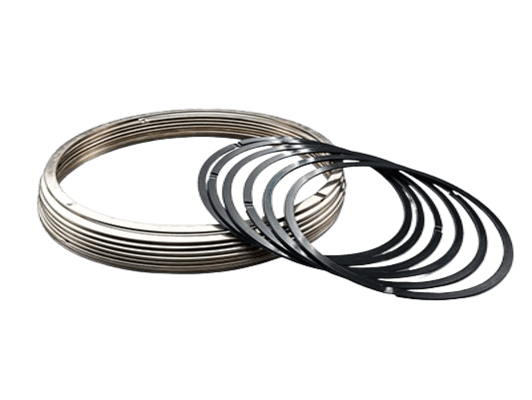

ProHydraulics supplies FEY rings: lamellar sealing rings for bearings and locking (retaining) rings for axial fixing of parts.

Sealing rings

Thin spring-steel lamellar rings that seal by the labyrinth effect. They have a simple design, low space requirements and low friction. They retain grease in plain and roller bearings and protect them from dust, dirt and moisture.

  • single-turn rings (FK3), with a joint gap;
  • double-turn rings (FK6), without a joint gap: higher sealing level, also used as a protective seal in front of rubber lip seals;
  • diameters from 15 to 1300 mm (0.6 to 51 inches).

Locking rings

Retaining rings for axial fixing of parts on a shaft or in a housing bore. Supplied in single-turn and double-turn versions:

  • internal rings (ESB, DSB): for a housing bore;
  • external rings (ESW, DSW): for a shaft.

What to send for a quotation

  • a drawing or a sample
  • ring type: sealing or locking, internal or external
  • diameter (sealing rings: 15 to 1300 mm)
  • single-turn or double-turn ring
  • the application and the working conditions
  • quantity: one-off or regular

Send the request through the form below or to office@prohydraulics.eu.
